WEBPAL

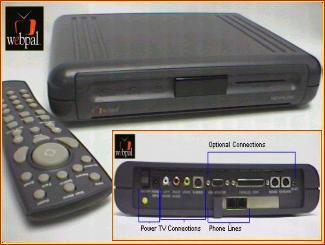

A The WebPal Internet Box converts a television set (or VGA monitor) into a device that can access the Internet. The box is operated by its own hand-held remote control unit, a wireless keyboard is also available for use. WebPal's built-in 33.6Kbps modem lets you surf the net, through a regular voice grade telephone line, at very high speeds. Our product is more versatile than many others, e.g., you can use the Internet Service Provider we recommend or specify your own PPP/PAP or CHAP provider. The supplied IR keyboard eases data entry without messy data cables.

The WebPal box contains its own built-in web browser, e-mail software, and a windowed operating environment developed exclusively for embedded systems. Browser, e-mail, and operating system software are stored in flash (upgradeable) memory, so that software improvements can be downloaded to it from the Internet.

WebPal's hardware is also designed for expansion and utility. It's 32-bit RISC Multimedia Processor operates with standard 4MB DRAM (SIMM upgradeable) memory. The WebPal front panel includes message, activity, and power indicators, a slot for future "smart" credit cards, and a window for receiving remote control signals. Its rear panel includes an input jack for the supplied 8-volt power adapter, a power on/off switch with reset button, and external ports for connecting an S-Video (S-VHS) or composite TV, TV audio cables, and telephone lines. There are also ports for connecting a VGA computer monitor, a standard PS/2 style computer keyboard and PS/2 mouse, and parallel (EPP, ECP) printer.

Hardware:
32-bit RISC Multimedia Processor Power Switch
ISA Compatible 33.6kbps Modem Power, Activity, and Message LED Indicator Lights
4 MB DRAM (SIMM Upgradable) Reset Button
1 MB Flash ROM (For WebPal Software Upgrades) 8 Volt Power Adapter (1.5 Amp)
Infrared Remote Control Operation VGA Computer Monitor Port
Anti-Flickering Hardware PS/2 Mouse Port Connection
TV Connection: S-Video or Composite Video (NTSC/PAL) PS/2 Keyboard Port Connection
Audio Connection: L and R Stereo Audio (RCA) Parallel Printer Port
Built-in Smart Card Logic Circuits IR Keyboard

Web Browser Software:
HTML 3 Compliant Internet Browser (Upgradable) Supports Favorite Places
Netscape and HTML 3.x extensions Active Page/Document Printing Capability
On-Screen Keyboard Display Option (For Keystroke Entry) TCP/IP and PPP Software Protocols with PAP or CHAP authentication
Supports GIF, JPEG and XBM Inline Images

E-Mail Software Support:
IMAP or POP3 E-Mail System Support Automatic E-Mail Check/Update & LED Alert
Multiple Accounts (4) and Mailbox Support E-Mail Printing Capability

Software Setup Selection Options:
Use Default Internet Provider Service or Other Internet Provider Select Printer Type
Select Keyboard Display Type: abcdefg or qwerty IR Keyboard
